Output Files

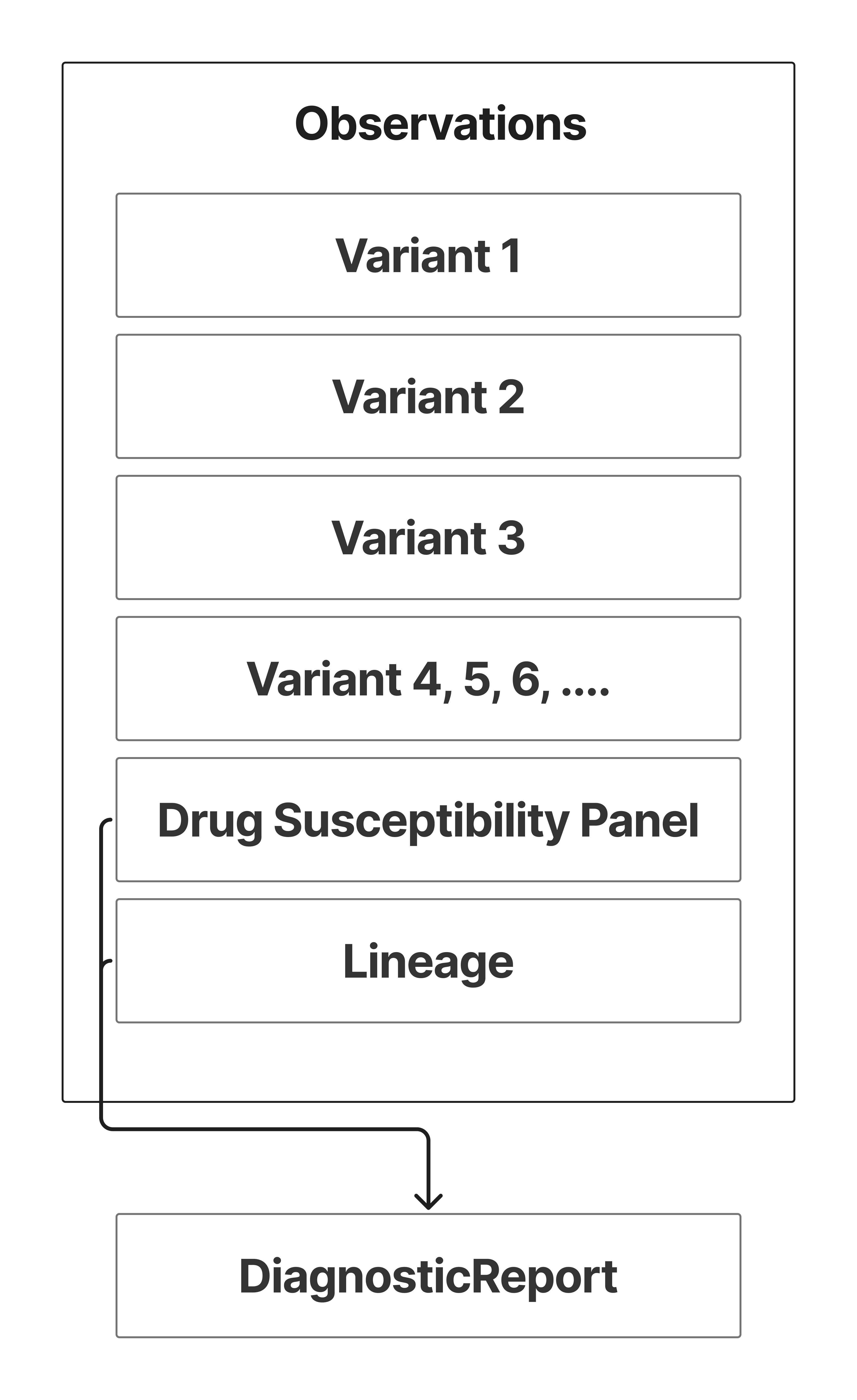

The primary output is a HL7 FHIR Bundle containing genomic observations merged with DiagnosticReport.
FHIR Genomic Bundle
1. Variant Observation Resources
Each detected variant generates an observation (LOINC 69548-6) containing:
Genomic Coordinates:
Deeplex Myc-TB codon change: (e.g.,
cac445gac) - CustomSP000800.pHGVS: Amino acid change (e.g.,
NC_000962.3:p.(H445D)) - LOINC48005-3.
Gene Information: The affected gene (e.g., rpoB) - LOINC
48018-6.Clinical Significance: WHO classification (e.g., Assoc w R) - LOINC
53037-8.
Example: Variant Observation Resource
{
"fullUrl": "urn:uuid:sample1-obs-1",
"resource": {
"resourceType": "Observation",
"id": "sample1-obs-1",
"meta": {
"profile": [
"http://hl7.org/fhir/uv/genomics-reporting/StructureDefinition/variant"
],
"tag": [
{
"system": "http://terminology.kemkes.go.id/sp",
"code": "genomics",
"display": "Genomics"
}
]
},
"status": "final",
"category": [
{
"coding": [
{
"system": "http://terminology.hl7.org/CodeSystem/observation-category",
"code": "laboratory",
"display": "Laboratory"
}
]
},
{
"coding": [
{
"system": "http://terminology.hl7.org/CodeSystem/v2-0074",
"code": "GE",
"display": "Genetics"
}
]
}
],
"code": {
"coding": [
{
"system": "http://loinc.org",
"code": "69548-6",
"display": "Genetic variant assessment"
}
]
},
"subject": {
"reference": "Patient/sample1-patient"
},
"specimen": {
"reference": "Specimen/sample1-specimen"
},
"effectiveDateTime": "2026-04-23T07:38:04.270765+00:00",
"performer": [
{
"reference": "Organization/1"
}
],
"valueCodeableConcept": {
"coding": [
{
"system": "http://loinc.org",
"code": "LA9633-4",
"display": "Present"
}
],
"text": "Present"
},
"component": [
{
"code": {
"coding": [
{
"system": "http://loinc.org",
"code": "48018-6",
"display": "Gene studied [ID]"
}
]
},
"valueCodeableConcept": {
"coding": [
{
"system": "https://www.ncbi.nlm.nih.gov/gene",
"code": "rpoB1",
"display": "rpoB1"
}
],
"text": "rpoB1"
}
},
{
"code": {
"coding": [
{
"system": "http://loinc.org",
"code": "79162-1",
"display": "Deeplex Myc-TB codon change"
}
]
},
"valueCodeableConcept": {
"coding": [
{
"system": "https://www.deeplex.com/",
"code": "cac445gac",
"display": "cac445gac"
}
],
"text": "cac445gac"
}
},
{
"code": {
"coding": [
{
"system": "http://loinc.org",
"code": "48005-3",
"display": "Amino acid change (pHGVS)"
}
]
},
"valueCodeableConcept": {
"coding": [
{
"system": "https://varnomen.hgvs.org",
"code": "NC_000962.3:p.(H445D)",
"display": "H445D"
}
],
"text": "H445D"
}
},
{
"code": {
"coding": [
{
"system": "http://loinc.org",
"code": "53037-8",
"display": "Genetic variation clinical significance [Imp]"
}
]
},
"valueCodeableConcept": {
"coding": [
{
"system": "http://terminology.kemkes.go.id/sp",
"code": "SP000478",
"display": "Assoc w R"
}
],
"text": "Associated with resistance"
}
}
]
},
"request": {
"method": "PUT",
"url": "Observation/sample1-obs-1"
}
}
2. Drug Susceptibility Panel Observation
A single summary observation (LOINC 89486-5) reporting susceptibility status for specific drugs:
Components: Value for each drug (e.g., Rifampicin, Isoniazid, Bedaquiline).
Values:
Resistant(LOINCLA6676-6) orSusceptible(LOINCLA24225-7).
Example: Drug Susceptibility Panel Resource
{
"fullUrl": "urn:uuid:02058040-0799-4258-9517-3b1df746c031",
"resource": {
"resourceType": "Observation",
"id": "ERR2706911-susceptibility-panel",
"meta": {
"profile": [
"http://hl7.org/fhir/StructureDefinition/Observation"
]
},
"text": {
"status": "generated",
"div": "<div xmlns=\"http://www.w3.org/1999/xhtml\">Mycobacterial susceptibility panel for ERR2706911</div>"
},
"status": "final",
"category": [
{
"coding": [
{
"system": "http://terminology.hl7.org/CodeSystem/observation-category",
"code": "laboratory",
"display": "Laboratory"
}
]
},
{
"coding": [
{
"system": "http://terminology.hl7.org/CodeSystem/v2-0074",
"code": "GE",
"display": "Genetics"
}
]
}
],
"code": {
"coding": [
{
"system": "http://loinc.org",
"code": "89486-5",
"display": "Mycobacterial susceptibility panel Qualitative by Genotype method"
}
]
},
"subject": {
"reference": "Patient/ERR2706911-patient"
},
"specimen": {
"reference": "Specimen/ERR2706911-specimen"
},
"effectiveDateTime": "2026-01-12T05:45:05.277192+00:00",
"performer": [
{
"reference": "Organization/1"
}
],
"component": [
{
"code": {
"coding": [
{
"system": "http://loinc.org",
"code": "89489-9",
"display": "rifAMPin [Susceptibility] by Genotype method"
}
]
},
"valueCodeableConcept": {
"coding": [
{
"system": "http://loinc.org",
"code": "LA24225-7",
"display": "Susceptible"
}
]
}
},
{
"code": {
"coding": [
{
"system": "http://loinc.org",
"code": "89488-1",
"display": "Isoniazid [Susceptibility] by Genotype method"
}
]
},
"valueCodeableConcept": {
"coding": [
{
"system": "http://loinc.org",
"code": "LA6676-6",
"display": "Resistant"
}
]
}
},
{
"code": {
"coding": [
{
"system": "http://loinc.org",
"code": "89491-5",
"display": "Ethambutol [Susceptibility] by Genotype method"
}
]
},
"valueCodeableConcept": {
"coding": [
{
"system": "http://loinc.org",
"code": "LA24225-7",
"display": "Susceptible"
}
]
}
},
{
"code": {
"coding": [
{
"system": "http://loinc.org",
"code": "92242-7",
"display": "Pyrazinamide [Susceptibility] by Genotype method"
}
]
},
"valueCodeableConcept": {
"coding": [
{
"system": "http://loinc.org",
"code": "LA24225-7",
"display": "Susceptible"
}
]
}
},
{
"code": {
"coding": [
{
"system": "http://loinc.org",
"code": "96112-8",
"display": "Moxifloxacin [Susceptibility] by Genotype method"
}
]
},
"valueCodeableConcept": {
"coding": [
{
"system": "http://loinc.org",
"code": "LA24225-7",
"display": "Susceptible"
}
]
}
},
{
"code": {
"coding": [
{
"system": "http://loinc.org",
"code": "20629-2",
"display": "levoFLOXacin [Susceptibility]"
}
]
},
"valueCodeableConcept": {
"coding": [
{
"system": "http://loinc.org",
"code": "LA24225-7",
"display": "Susceptible"
}
]
}
},
{
"code": {
"coding": [
{
"system": "http://loinc.org",
"code": "96107-8",
"display": "Bedaquiline [Susceptibility] by Genotype method"
}
]
},
"valueCodeableConcept": {
"coding": [
{
"system": "http://loinc.org",
"code": "LA24225-7",
"display": "Susceptible"
}
]
}
},
{
"code": {
"coding": [
{
"system": "http://loinc.org",
"code": "96109-4",
"display": "Delamanid [Susceptibility] by Genotype method"
}
]
},
"valueCodeableConcept": {
"coding": [
{
"system": "http://loinc.org",
"code": "LA24225-7",
"display": "Susceptible"
}
]
}
},
{
"code": {
"coding": [
{
"system": "http://loinc.org",
"code": "93850-6",
"display": "Pretomanid [Susceptibility]"
}
]
},
"valueCodeableConcept": {
"coding": [
{
"system": "http://loinc.org",
"code": "LA24225-7",
"display": "Susceptible"
}
]
}
},
{
"code": {
"coding": [
{
"system": "http://loinc.org",
"code": "96114-4",
"display": "Streptomycin [Susceptibility] by Genotype method"
}
]
},
"valueCodeableConcept": {
"coding": [
{
"system": "http://loinc.org",
"code": "LA24225-7",
"display": "Susceptible"
}
]
}
},
{
"code": {
"coding": [
{
"system": "http://loinc.org",
"code": "89484-0",
"display": "Amikacin [Susceptibility] by Genotype method"
}
]
},
"valueCodeableConcept": {
"coding": [
{
"system": "http://loinc.org",
"code": "LA24225-7",
"display": "Susceptible"
}
]
}
},
{
"code": {
"coding": [
{
"system": "http://loinc.org",
"code": "89482-4",
"display": "Kanamycin [Susceptibility] by Genotype method"
}
]
},
"valueCodeableConcept": {
"coding": [
{
"system": "http://loinc.org",
"code": "LA24225-7",
"display": "Susceptible"
}
]
}
},
{
"code": {
"coding": [
{
"system": "http://loinc.org",
"code": "89483-2",
"display": "Capreomycin [Susceptibility] by Genotype method"
}
]
},
"valueCodeableConcept": {
"coding": [
{
"system": "http://loinc.org",
"code": "LA24225-7",
"display": "Susceptible"
}
]
}
},
{
"code": {
"coding": [
{
"system": "http://loinc.org",
"code": "96108-6",
"display": "Clofazimine [Susceptibility] by Genotype method"
}
]
},
"valueCodeableConcept": {
"coding": [
{
"system": "http://loinc.org",
"code": "LA24225-7",
"display": "Susceptible"
}
]
}
},
{
"code": {
"coding": [
{
"system": "http://loinc.org",
"code": "96110-2",
"display": "Ethionamide [Susceptibility] by Genotype method"
}
]
},
"valueCodeableConcept": {
"coding": [
{
"system": "http://loinc.org",
"code": "LA24225-7",
"display": "Susceptible"
}
]
}
},
{
"code": {
"coding": [
{
"system": "http://loinc.org",
"code": "96111-0",
"display": "Linezolid [Susceptibility] by Genotype method"
}
]
},
"valueCodeableConcept": {
"coding": [
{
"system": "http://loinc.org",
"code": "LA24225-7",
"display": "Susceptible"
}
]
}
},
{
"code": {
"coding": [
{
"system": "http://loinc.org",
"code": "103959-3",
"display": "cycloSERINE [Susceptibility] by Genotype method"
}
]
},
"valueCodeableConcept": {
"coding": [
{
"system": "http://loinc.org",
"code": "LA24225-7",
"display": "Susceptible"
}
]
}
}
]
},
"request": {
"method": "PUT",
"url": "Observation/ERR2706911-susceptibility-panel"
}
}
3. Lineage Observation
Classifies the TB strain (LOINC 614-8) using http://tb-lineage.org codes (e.g., Lineage 1, Lineage 2).
Example: Lineage Observation Resource
{
"fullUrl": "urn:uuid:ceedc1e1-aab3-4235-be9c-54470f0ab612",
"resource": {
"resourceType": "Observation",
"id": "ERR2706911-lineage",
"meta": {
"profile": [
"http://hl7.org/fhir/StructureDefinition/Observation"
],
"tag": [
{
"system": "http://terminology.kemkes.go.id/sp",
"code": "genomics",
"display": "Genomics"
}
]
},
"text": {
"status": "generated",
"div": "<div xmlns=\"http://www.w3.org/1999/xhtml\">Mycobacterial Lineage: lineage4.7 (Euro-American)</div>"
},
"status": "final",
"category": [
{
"coding": [
{
"system": "http://terminology.hl7.org/CodeSystem/observation-category",
"code": "laboratory",
"display": "Laboratory"
}
]
},
{
"coding": [
{
"system": "http://terminology.hl7.org/CodeSystem/v2-0074",
"code": "GE",
"display": "Genetics"
}
]
}
],
"code": {
"coding": [
{
"system": "http://loinc.org",
"code": "614-8",
"display": "Mycobacterial strain [Type] in Isolate by Mycobacterial subtyping"
}
]
},
"valueCodeableConcept": {
"coding": [
{
"system": "http://tb-lineage.org",
"code": "lineage4.7",
"display": "TB Lineage lineage4.7"
}
],
"text": "Lineage lineage4.7"
},
"subject": {
"reference": "Patient/ERR2706911-patient"
},
"specimen": {
"reference": "Specimen/ERR2706911-specimen"
},
"effectiveDateTime": "2026-01-12T05:45:05.277209+00:00",
"performer": [
{
"reference": "Organization/1"
}
]
},
"request": {
"method": "PUT",
"url": "Observation/ERR2706911-lineage"
}
}
]
}
Clinical Data Integration & Reporting
Generated Resources
DiagnosticReport:
Code: LOINC
81247-9(Master HL7 genetic variant reporting panel).Conclusion: Text summary of resistance and lineage.
Presentation: Base64 encoded HTML report.
Drug Resistance Classification
The DiagnosticReport conclusion is derived using the following SNOMED CT logic order:
Classification |
Definition |
Logic |
|---|---|---|
Sensitive |
No resistance detected |
No Associated with Resistance mutation |
XDR-TB |
Extensively drug-resistant |
(MDR or RR) + Resistance to Fluoroquinolones + Group A drugs |
Pre-XDR-TB |
Pre-Extensively drug-resistant |
(MDR or RR) + Resistance to Fluoroquinolones |
MDR-TB |
Multidrug-resistant TB |
Resistance to both Isoniazid and Rifampicin |
RR-TB |
Rifampicin-resistant TB |
Resistance to Rifampicin detected (without Isoniazid) |
HR-TB |
Isoniazid-resistant TB |
Resistance to Isoniazid detected (without Rifampicin) |
Streptomycin mono-resistant |
Streptomycin-resistant TB |
Resistance to Streptomycin only |
Ethionamide mono-resistant |
Ethionamide-resistant TB |
Resistance to Ethionamide only |
Pyrazinamide mono-resistant |
Pyrazinamide-resistant TB |
Resistance to Pyrazinamide only |
Ethambutol mono-resistant |
Ethambutol-resistant TB |
Resistance to Ethambutol only |
Ciprofloxacin mono-resistant |
Ciprofloxacin-resistant TB |
Resistance to Ciprofloxacin only (without other Fluoroquinolones) |
Drug-resistant |
Antibiotic resistant tuberculosis |
Any other resistance combination not falling into above categories |
Example: DiagnosticReport conclusion code
],
"conclusion": "HR-TB (Isoniazid-resistant tuberculosis). Detected resistance genes: katG. Detected drug resistance: isoniazid by genotype method. TB Lineage lineage4.7 detected. Reference genome: NC_000962.3",
"conclusionCode": [
{
"text": "HR-TB",
"coding": [
{
"system": "http://snomed.info/sct",
"code": "414546009",
"display": "Isoniazid resistant tuberculosis"
}
]
},
{
"text": "Lineage lineage4.7"
}
],
"presentedForm": [
{
"contentType": "text/html",
"language": "en-US",
"title": "TB Genomic Analysis Report",
"data": "PGRpdiB4bWxucz0iaHR0cDovL3d3dy5......"
}
]
},
"request": {
"method": "PUT",
"url": "DiagnosticReport/ERR2706911-genomic-report"
}
}
Output Directory Structure
results/
├── fhir/
│ └── *.fhir.json
├── fhir_merged/
│ └── *.merged.fhir.json
├── fhir_upload/
│ └── *.merged.fhir.upload.json
├── runningstat/
│ └── dag.html
│ └── execution.html
│ └── timeline.html
├── software_versions.yml
